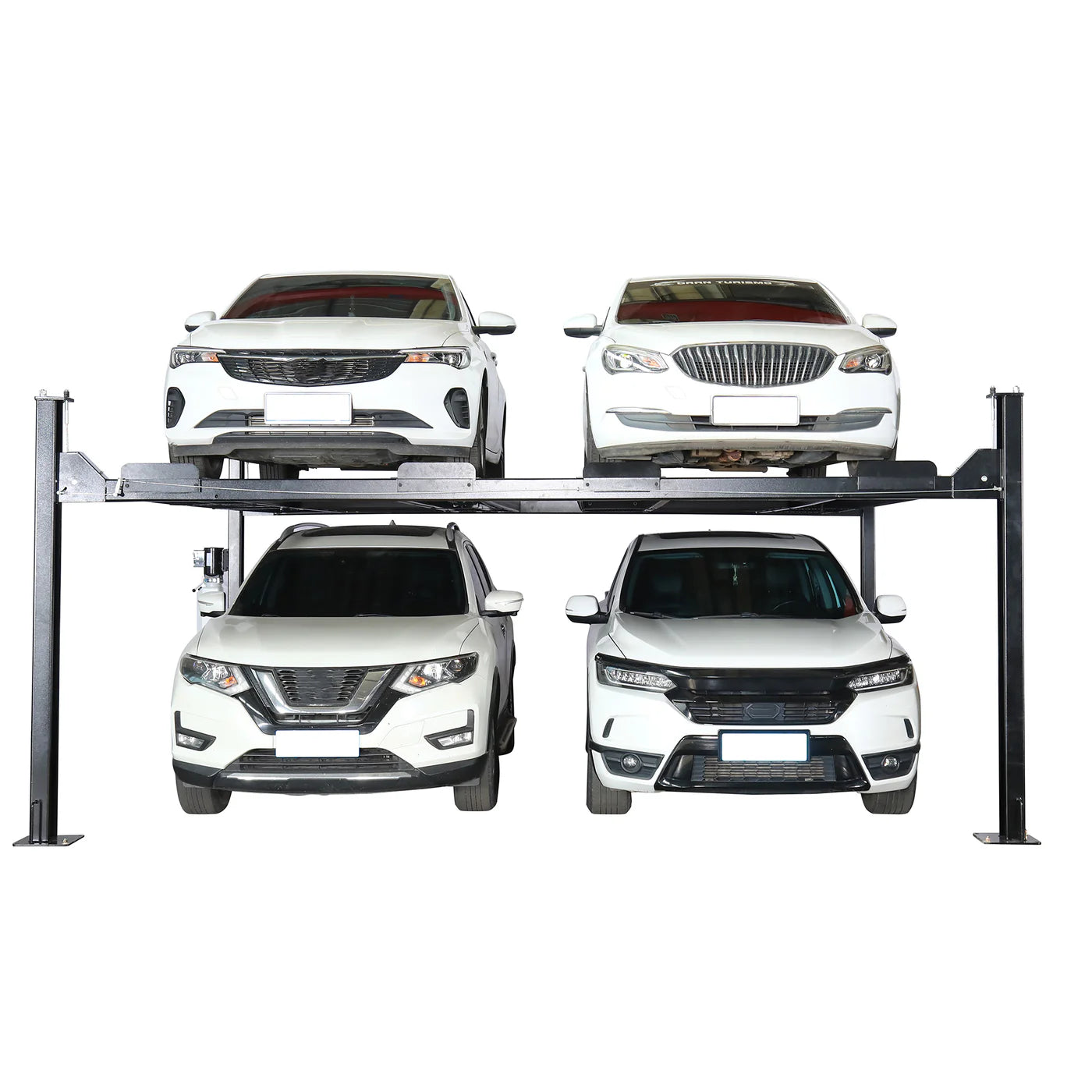

APlusLift 9,000LB 4-Post Double Deck Parking Storage Car Lift - HW-9KDP

APlusLift HW-9KDP 4-post 4-Post Double Decker Parking Lift is designed and built to commercial grade standards and will provide many years of service. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.

APlusLift HW-9KDP 4-Post Lift includes 2 decks, 4 runways, a caster kit, 2 jack trays, 6 drip trays, 4 removable approach ramps, and a power cord.

• Lifting Capacity: 9,000LB
• Usage: Parking/Storage/Service
• Powder Coated Finish with Superior Corrosion Resistance
• 4 Approach Ramps Included
• Overall Length: 230" with ramp or 194" without ramp
• Overall Height: 96"
• Overall Width: 210"
• Lifting Height: 82"
• Clearance Under Runway: 79"
• Width between Posts: 190"
• Drive Through Width: 93"x2
• Runway Size: 184"L x 19"W
• Width Between Four Runways: 37 3/8" - 19 11/16" - 37 3/8"
• Approach Ramps Size: 36"L x 19"W

• Lifting Time: 50 seconds

• Motor: 110V Single Phase 1.5HP 10A (recommend a 30A breaker)
• Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
• Concrete Thickness: 4" 3000psi
• Shipping Weight: 2,850LB
• Shipping package size: 210"L x 22"W x 36"H
