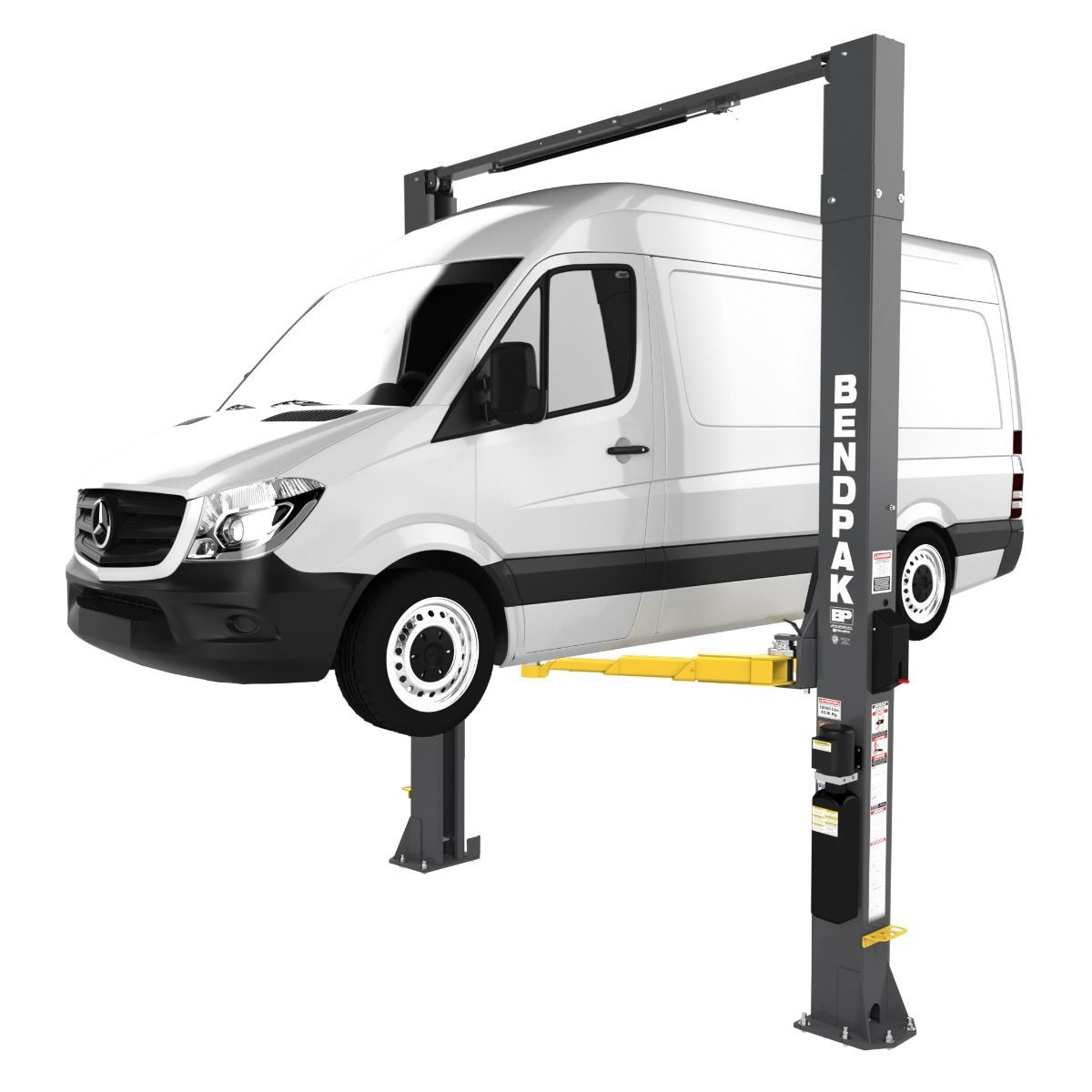

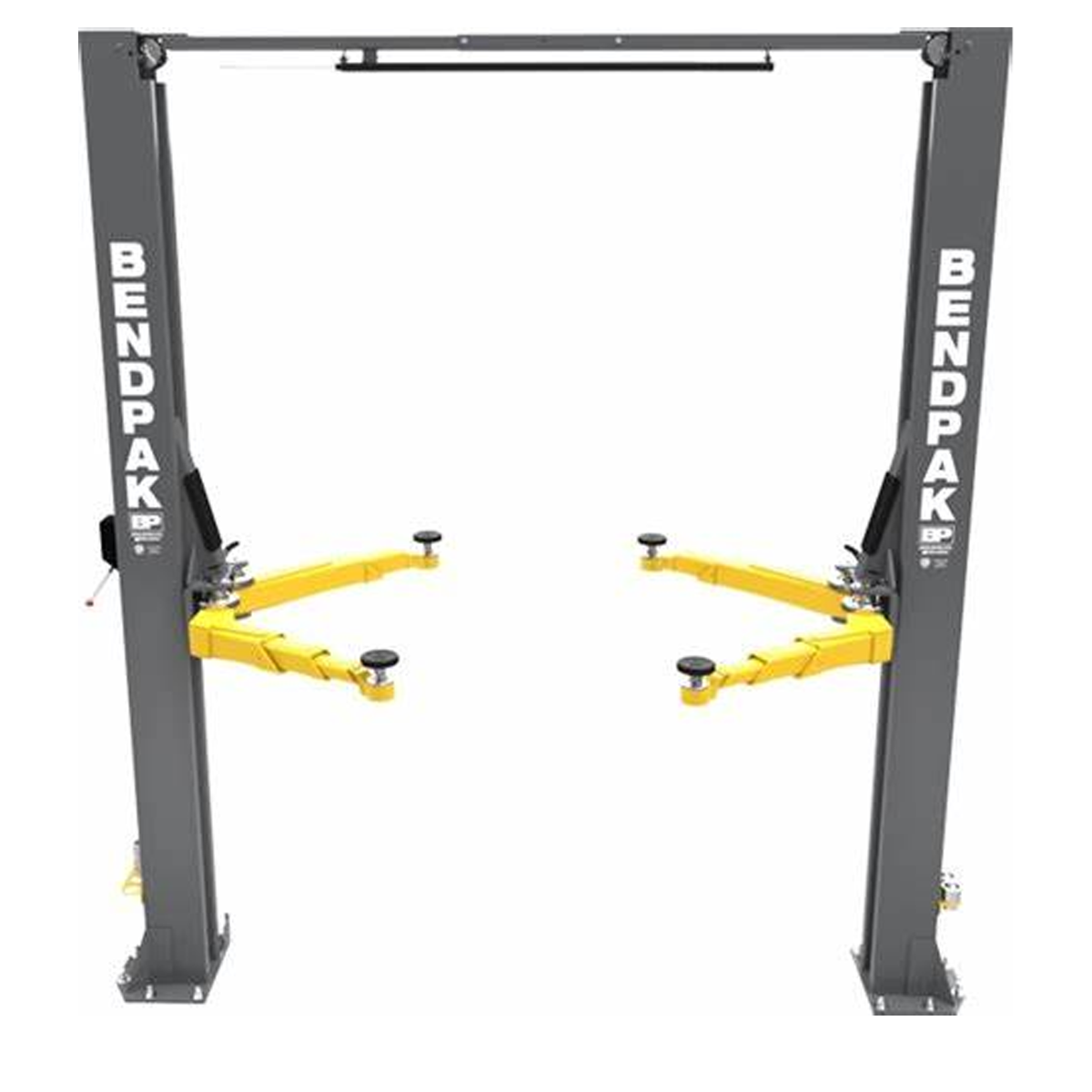

BendPak 10AP-168

The robust 10AP-168 delivers advanced technology, premium-grade materials, a cutting-edge design, as well as a 10,000 lb. lifting capacity. Unlike the standard 10AP, this lift offers an enhanced overall height of 168”, giving taller techs the room they need to work effectively.

• Durable powder coat finish
• Expandable top beam accommodates wide or narrow drive-thru configurations
• Double-telescoping screw pads offer increased versatility
• Padded overhead safety shutoff bar
• Exclusive Bi-Metric™ arm design for more versatile arm positioning
• Single-point safety release
• Drop-end arms provide a lower pad height
• Dual hydraulic direct-drive cylinders
• Oversized 53" & 59" tall carriages for superior strength and durability
• Electric / hydraulic HVLP power system
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3"
• Automatic arm restraints withstand over 2000-pounds of side force
• 3/8"(10mm) High-strength multi-strand galvanized steel equalizing cable
• Oversized cable sheave diameter reduces cable fatigue
• Four triple-telescoping arms
• ALI certified
