Delta Innovative Solutions

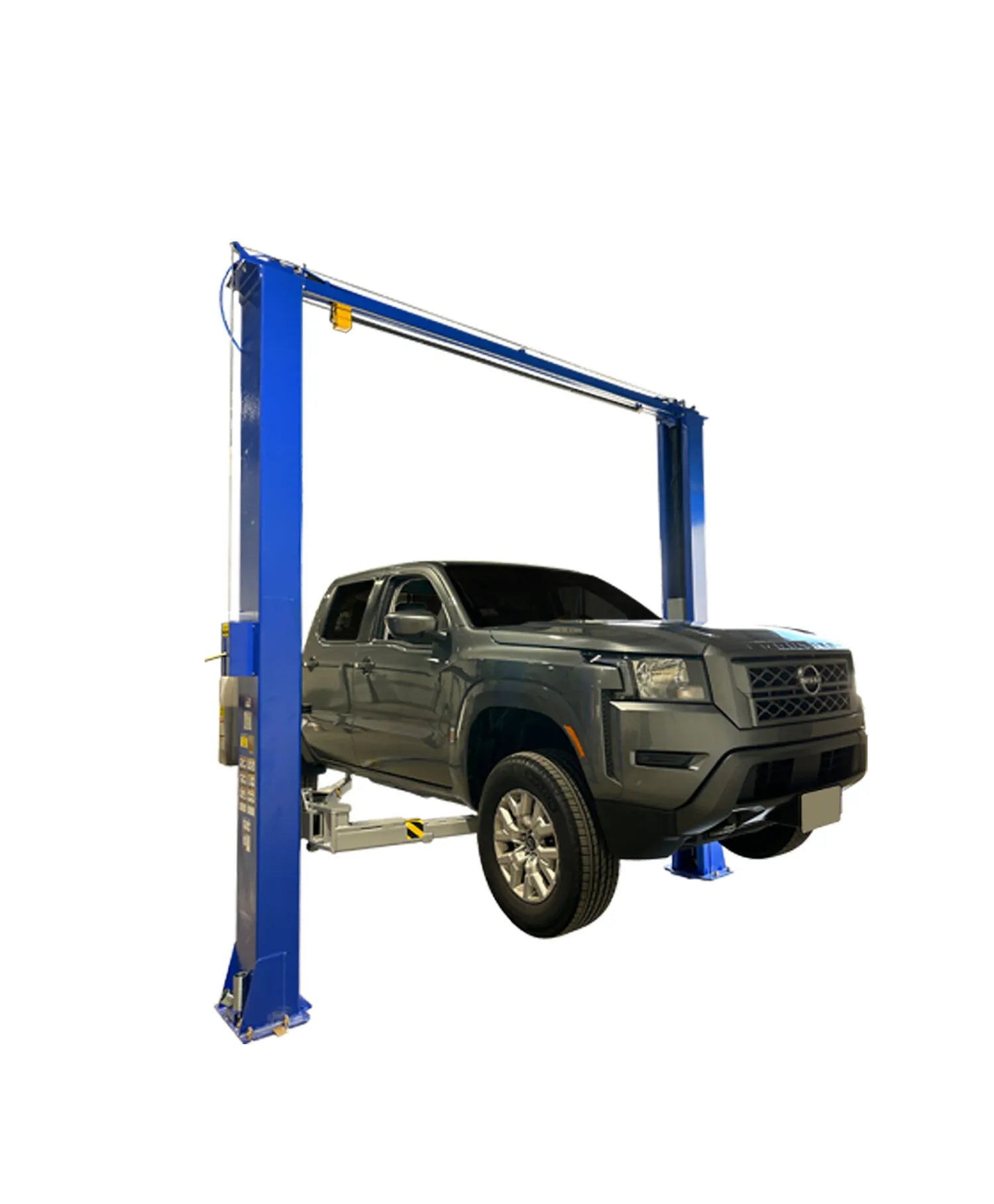

Tuxedo TP11KC-DX TWO POST CLEAR FLOOR

Tuxedo TP11KC-DX TWO POST CLEAR FLOOR

$4,320.00
$4,320.00
Sale Sold out

Two Post Clear Floor

  • 11,000 lbs Capacity
  • Bi-Symmetric arm design
  • Rubber Door Guards
  • 3 Stage Front Arms
  • Single Piece Column
  • Direct Drive pull Cylinders
  • Single Point Lock Release
  • Heavy Duty Arm Restraint System
  • Spin Up Low Profile Lift Pads
  • Stackable Adapters Included
  • External hose guards
Lift Model TP11KC-DX
Capacity 11,000 lbs.
Height Overall 144″
Width Overall w/ Power Unit 145-1/2″
Max Lift Height 71″
Width Between Columns 116″
Min. Pad Height 4″
Drive Thru Clearance 104″
Lifting Speed   50S
Asymmetric / Symmetric Asymmetric/Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max 23″ – 45″
Long Arm Reach – min/max 41″ – 57″
Narrow Bay Setting NA
Max Load Per Arm 2,750 lbs.
Ship Weight 1,705 lbs
Power 220V – 20 AMP – 1 PH
